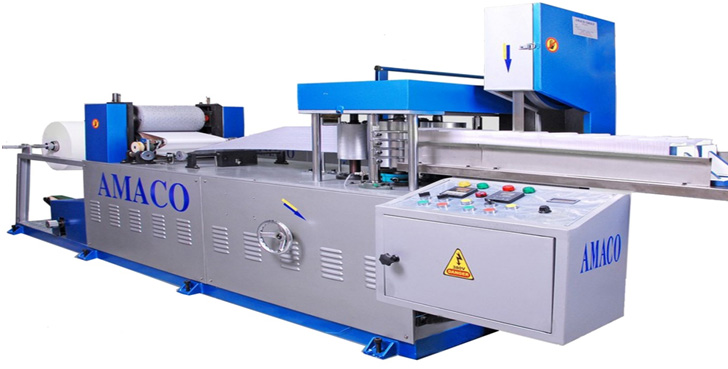

Table Napkin Machine AM 220

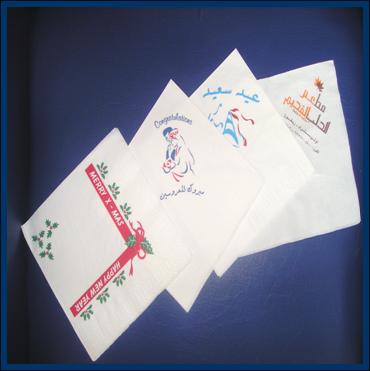

Table Napkin Machine ( with Printing Unit )
AM 220
Features :
- AC motor speed control

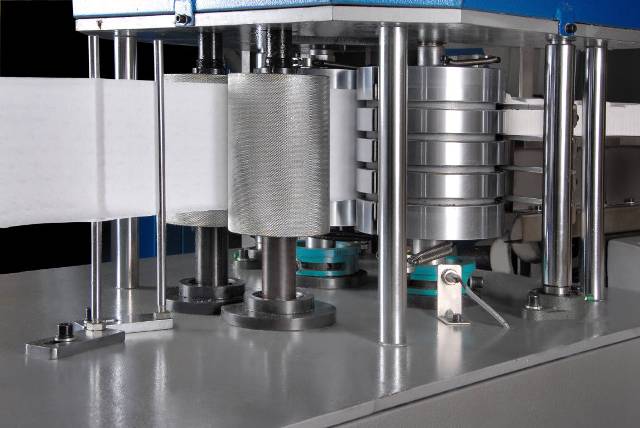

- Folding shape 1/4 square shape

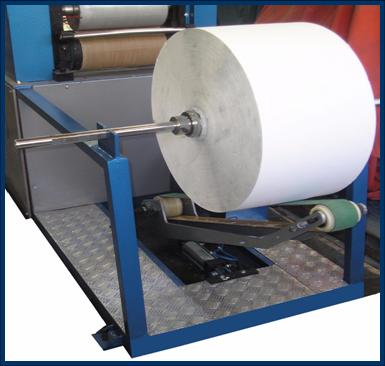

- Speed regulator for unwinding machine
- Operation is synchronized , suitable for low or high - grade material

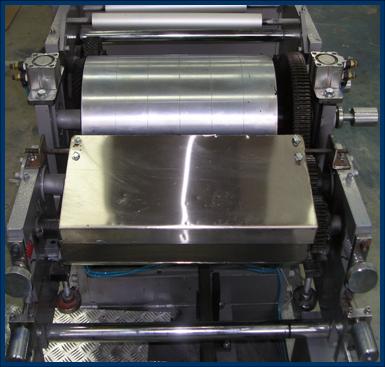

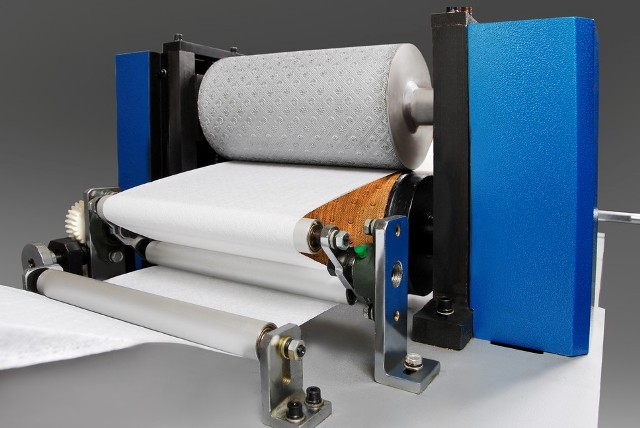

- Steel to paper embossing unit
- Marker system ( up - down ) by pneumatic air piston
- Safety cover on cutting unit
- Movement transmission by tension rubber belt
- Paper photocell ( web control )

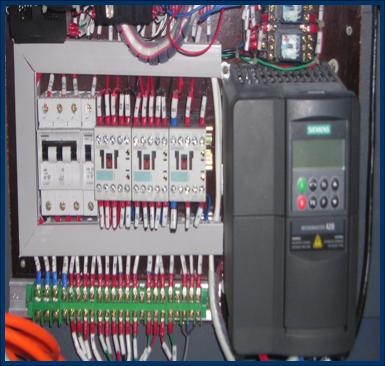

- Electric Protection for motors
Technical Features :
- Open sheet size : one sheet size that ranges from 21*21 cm till 40 by 40 cm
- Production Capacity : 125m./min
- 2 lines of production
- Main motor : 2.2 KW or depending the sheet size
- Cutting motor : 1.5 KW
- Converting web : 1 or 2 plies
