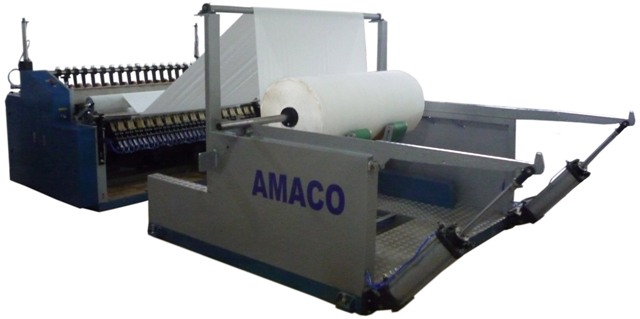

Maxi Roll Industrial Toilet & Towels Tissue Paper Machine - AM 218
Features:
* AC motor speed control.
* Air shaft axe (different diameters as request).

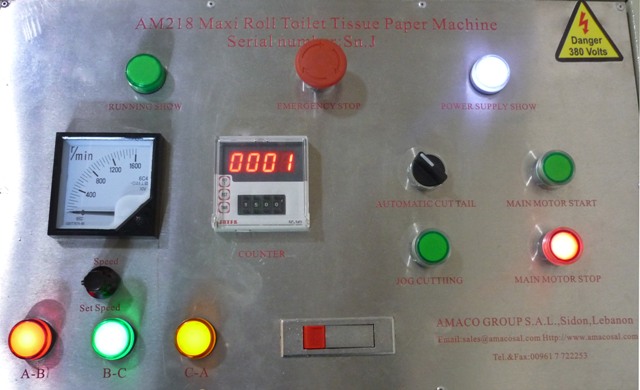

* Electronic Sheet Counter.
* Paper Tear Sensor.
* Roll alignment according to the finished product (left - right).
* Roll opening unit by double flat belts.

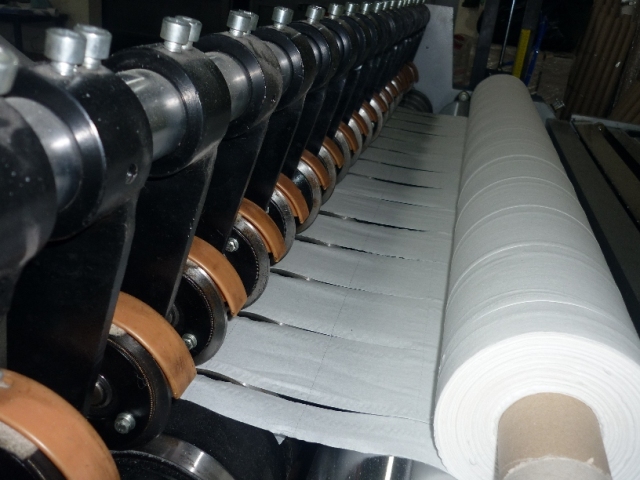

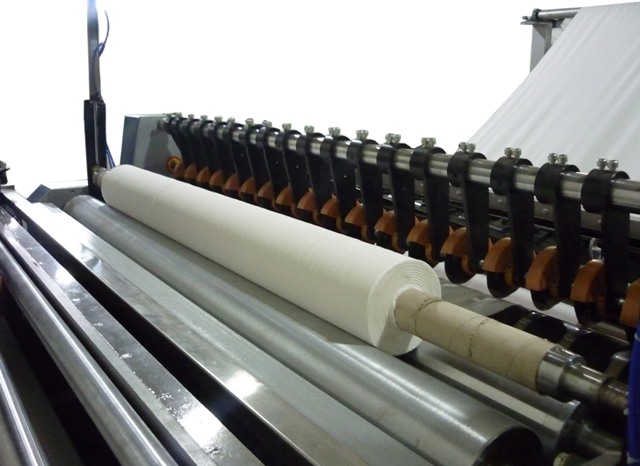

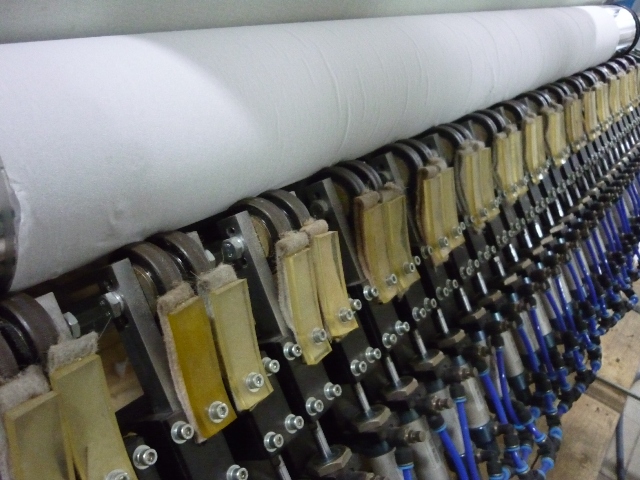

* Slitting unit placed over the winding rolls with adjustable blades.

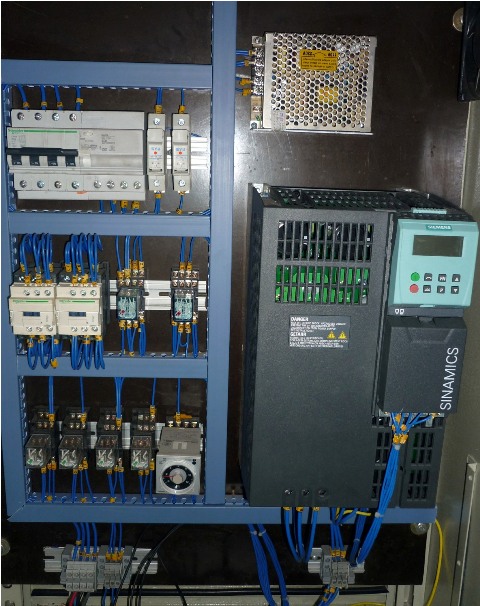

* Electric Appliances & Invertor of Siemens or International brand.
* Pneumatic Jumbo Roll lifting.
Optional:

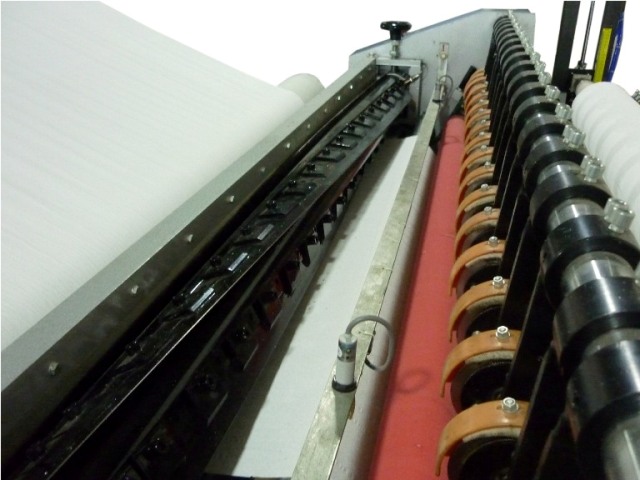

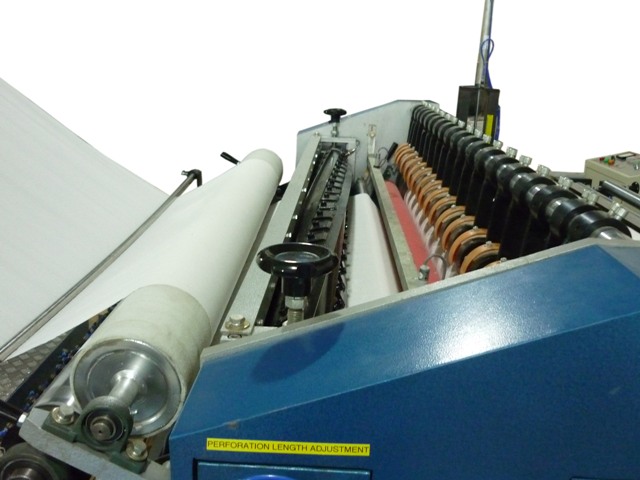

* Perforating unit with length adjustment.
* Calender Unit: Steel to hard rubber.
Technical Features:
* Max. Paper Roll Width: 1320 - 2650 mm. (as request).
* Max. Paper Roll Diameter: 1150 mm.
* Roll core inside diameter: 3'' (76.2 mm.).
* Maximum production speed: 120 - 150 m / min.
* Maximum Log Diameter: 400 mm.
* Power: 5.5 KW (or according to machine width).
* Slitting Width: 90 - 100 mm. (movable blades).
* Paper Basis Weight: 17 - 35 gsm. & 1 or 2 plies.
Optional:
* Single embossing unit (Steel to rubber) or Double embossing unit.
* Edge embossing unit.
