Automatic Facial Log Saw - AM 243 F
Features:
* Single cutting.
* Blade safety cabin.
* Automatic blade sharpening system.
* Automatic stop in case cabin door are open.
* Flat Belts Transfer Conveyors.
* Bundles in-feed controlled by Mitsubishi servo motor.
* Conveyors controller by a Mitsubishi servomotor, which provide the right
cutting length.
*Variable speed control by Mitsubishi invertor.

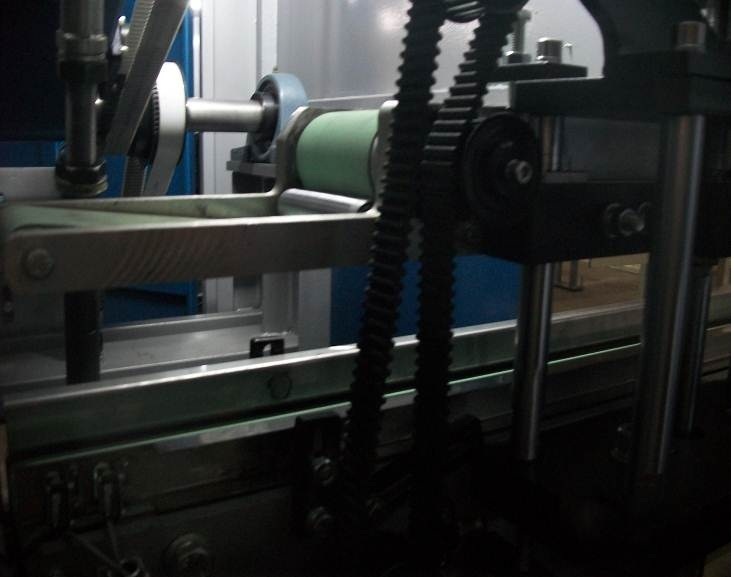

* Superior timing tension rubber belts for driving system.

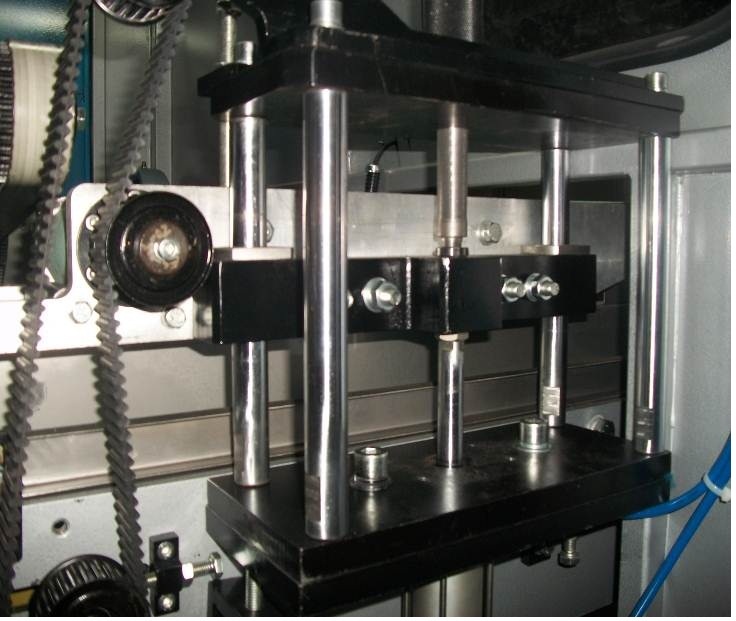

* Conveyors press by pneumatic system.
Technical Features:
* Paper log length: 800 - 2750 mm. (as request).
* Electronic cutting length control: variable within 90 - 250 mm.
* Bundle height: min. 40 mm. & max. 150 mm.
* Maximum operation speed: 60 - 70 cuts / cycle / min * 1 bundle.

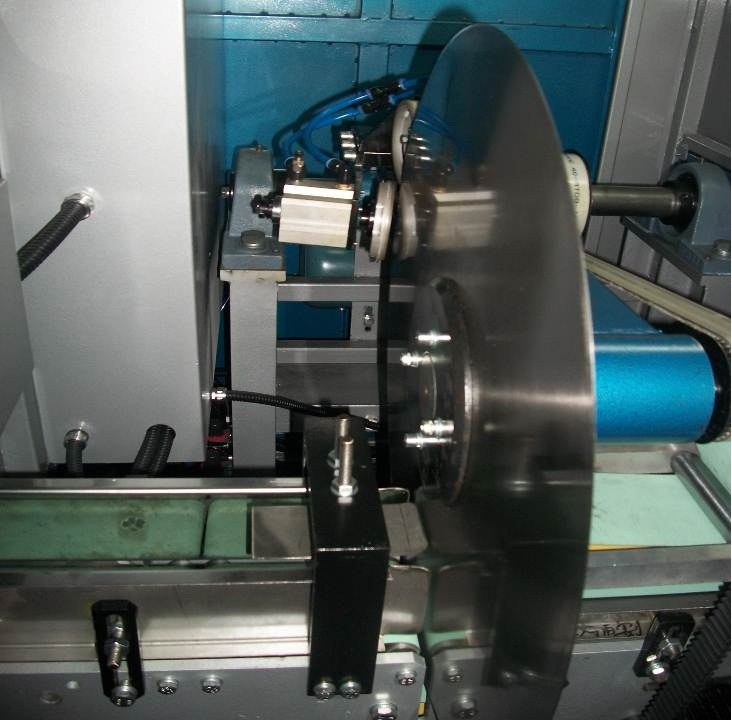

* Grinding wheel: diamond, Germany IKS Klingling berg.
* The sharpening can be adjusted to follow the edge of the disk.
* Circular Blade diameter: 610 mm. - Germany IKS Klingling berg.
* Conveyors height can be adjusted mechanically.

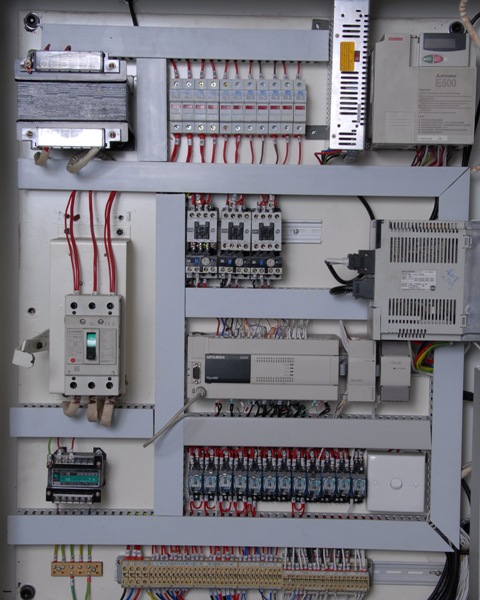

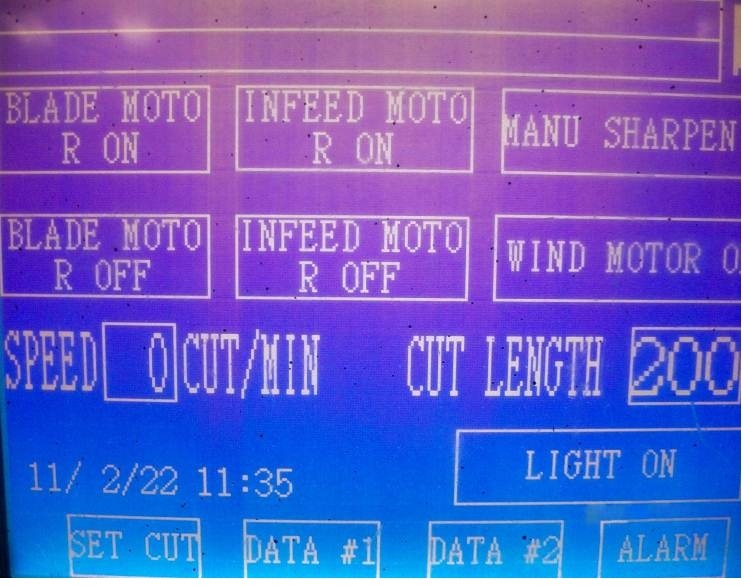

* Mitsubishi PLC Control System - Touch Screen operation.
* Power Supply: 380 V., 3 phases, 50 Hz, 24 V. DC control, 8 KW.

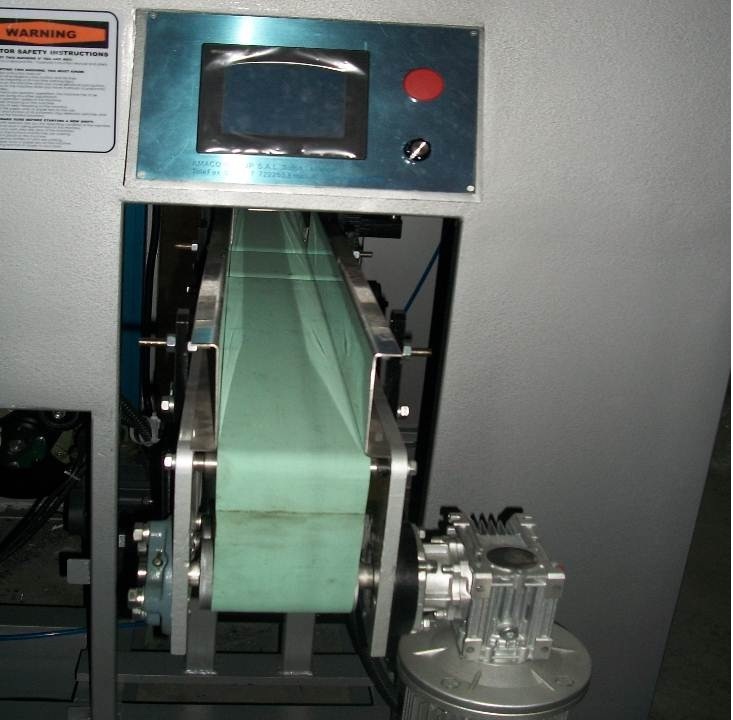

* Product Exit: flat belts moved by redactor motor transferring the cut tissues
out of the log saw.
