Full Automatic Facial Tissue Box Packaging Machine - AM 228
Features:
* Automatic delivery & box opening.
* Automatic filling / packing the paper into the carton box.
* Automatic gluing, sealing & closing the box.
* Maximum operation safety.
* Hot melt glue.
* Variable speed drive control.

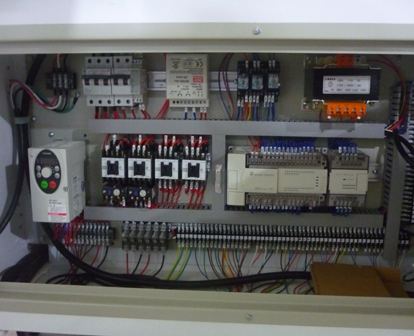

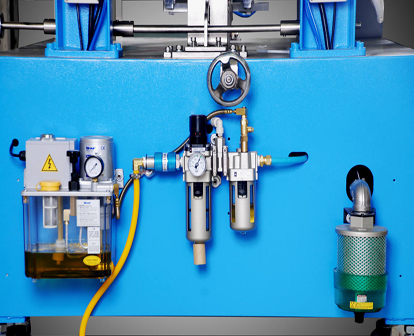

* Electronic, pneumatic & mechanical system.
* All electric equipment are from international brands.
Technical Features:
* Processing capacity: 30 - 40 boxes / min.
* Finished product size: Length: 200 - 250 mm. & Width: 110 - 125 mm.
& Height: 50 - 100 mm.
* Packing material: Thickness 0.5 - 0.6 mm. (350 - 400 GSM).
* Conveyor motor: 60 W.
* Vacuum pump motor: 1.1 KW.
* Heater power: 500 W x 6.
* Power: 380 V & 50 Hz & 3 Phases.
Images Gallery
