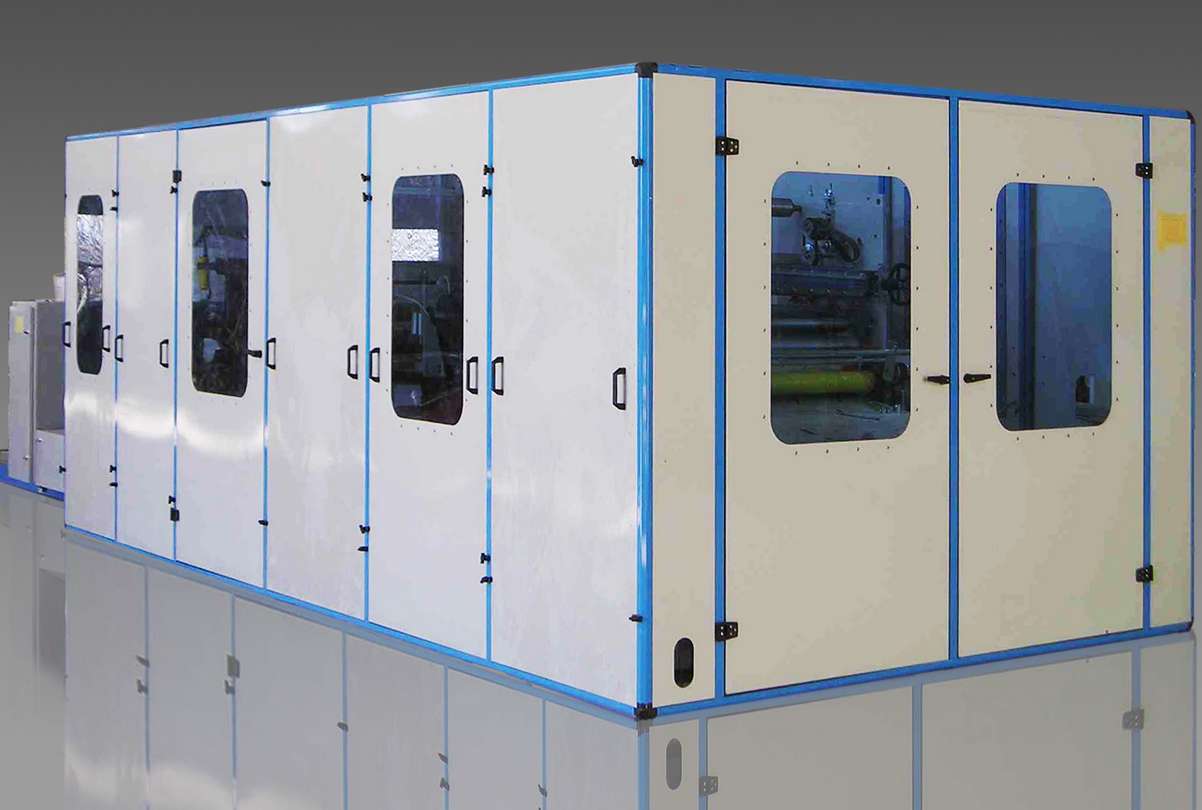

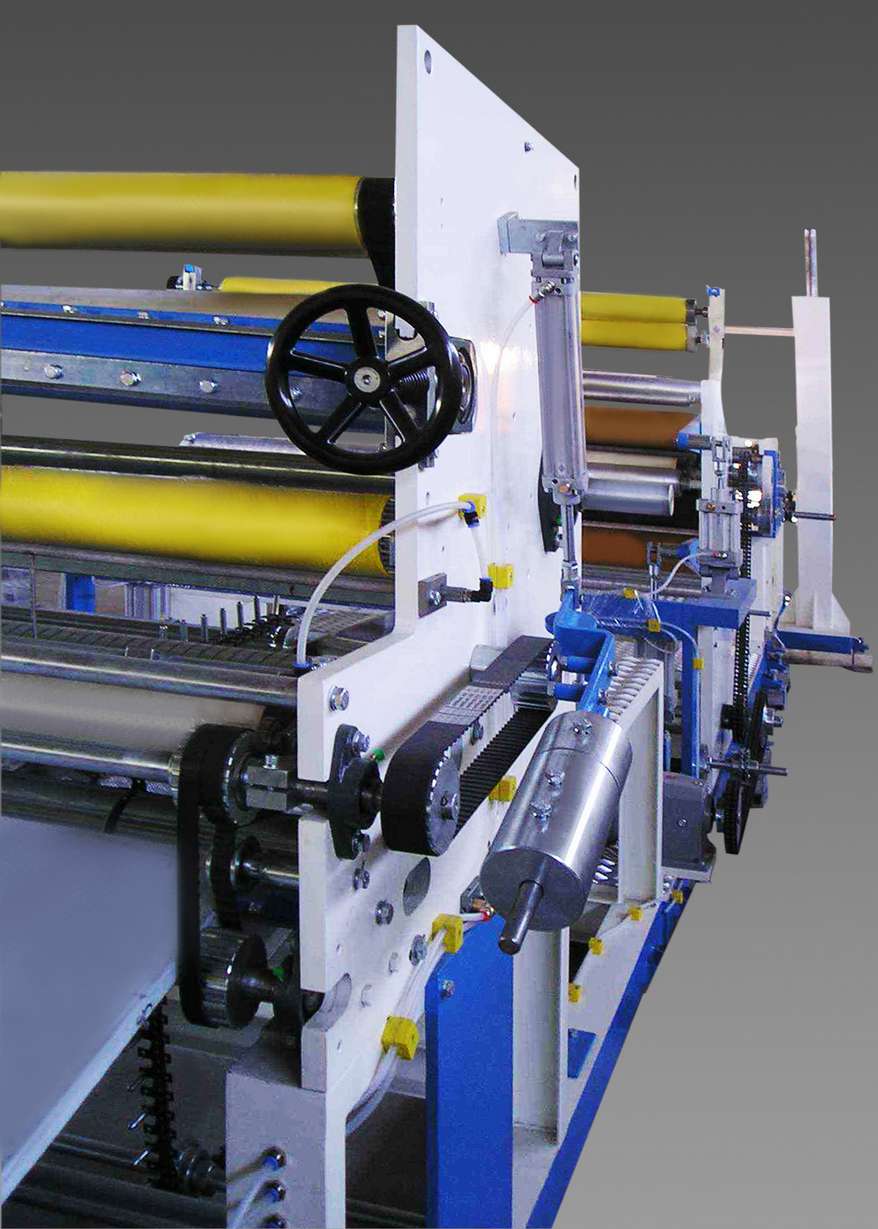

Full Automatic Toilet Paper, Towel Rolling & Medical Roll Machine - AM 112





 \



Features:



  * AC motor speed control.

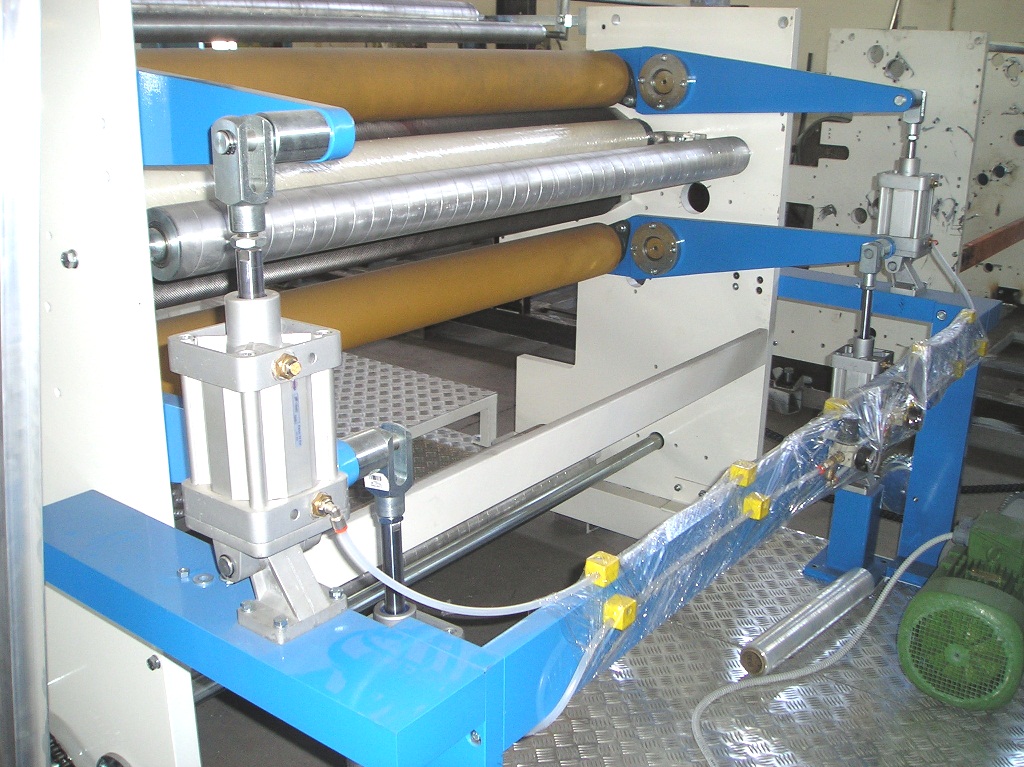

  * Lamination Unit: (rolling gluing system) automatic advancing unit to paper

     by pistons.

  * Automatic core feeding.

  * Core Storage: 200 Pcs.

  * Sheet quantity control.

  * Maximum perforating: 600 mm.

  * Minimum perforating: 80 mm.

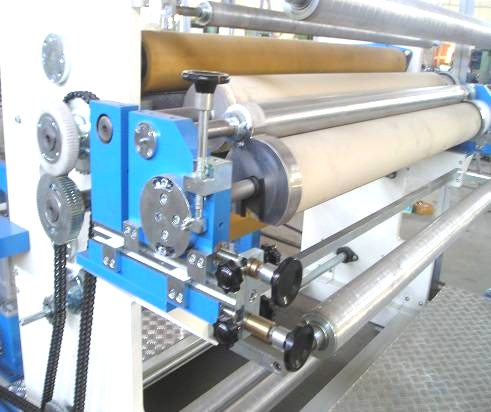

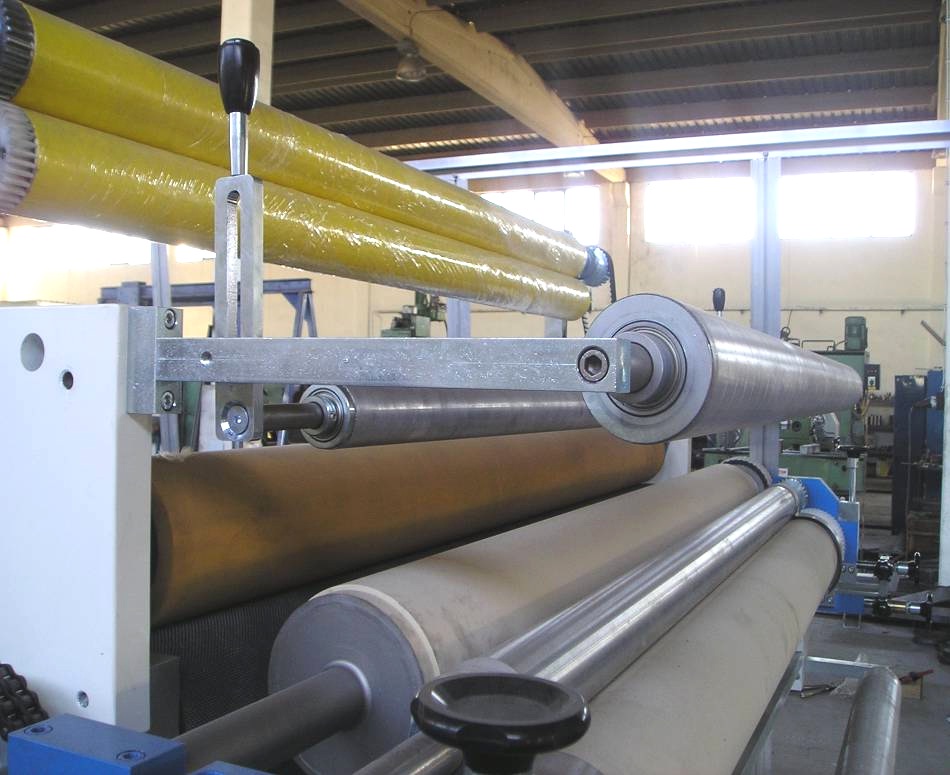

  * Double Embossing selection (point to point).

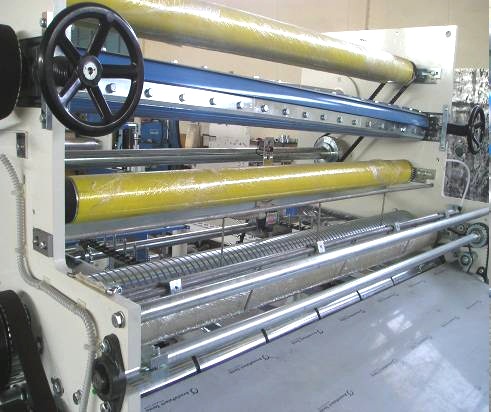

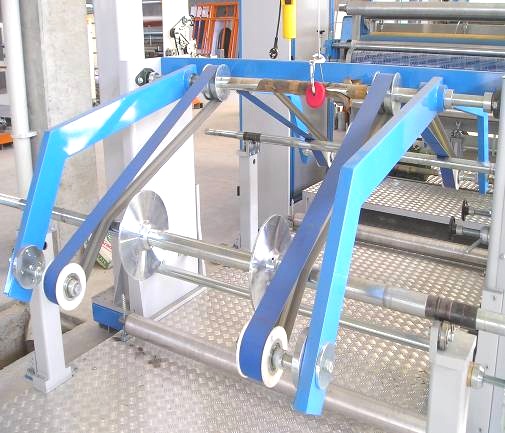

  * Roll opening unit by double flat belts.

  * Jumbo roll core diameter: 76 mm, 3 inches.

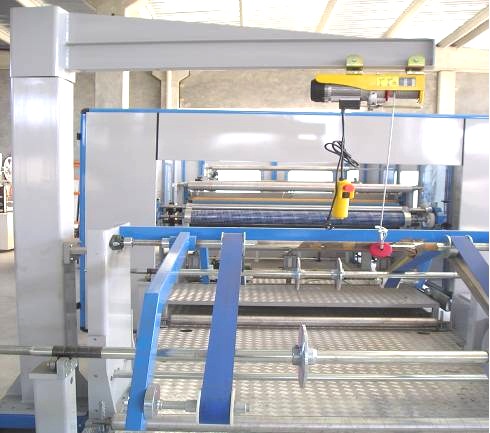

  * Roll lifting by winch (max 600 Kg).

  * PLC system, Touch screen control system.

  * Full automatic function.





Technical Features:



  * Speed: 150 - 200 m / min. (producing towel).

  * Usable paper width: max. 1600 - 2700 mm.

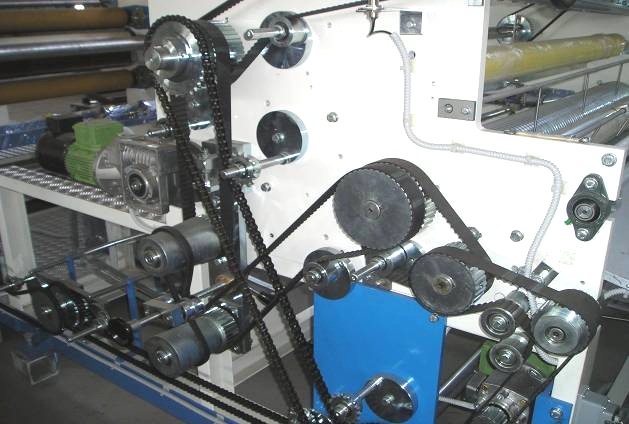

  * Main motor: 7.5 KW AC Redactor.

  * Conveyor motor: 0.37 KW Redactor.

  * Log ejector motor: 0.55 KW Redactor.

  * Core carrier motor: 0.37 KW Redactor.

  * Tail sealer motor: 0.18 KW Redactor.

  * Electric supply: 380 V. 3 phases.

  * Log diameter: max 220 mm.

  * Core diameter: 45 - 50  mm.

  * Glue capacity: 15 Lt.

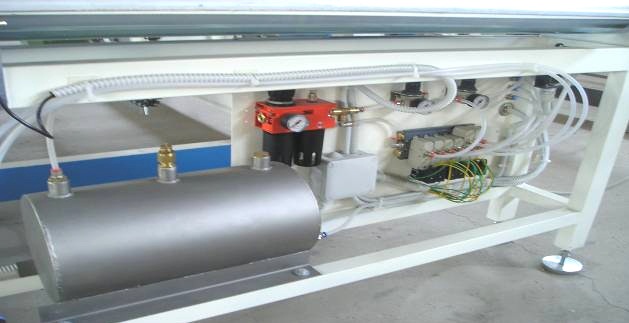

  * Air pressure: 6 Atm.





Images Gallery

Double click an image to view in real size
