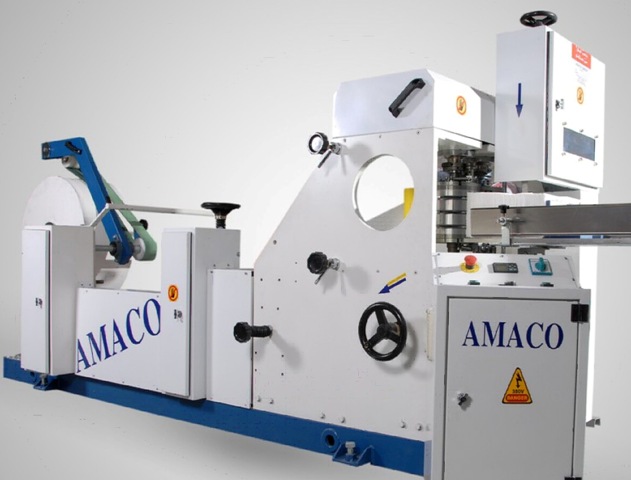

Table Napkin Machine - AM 120
Features:
* AC motor speed control.

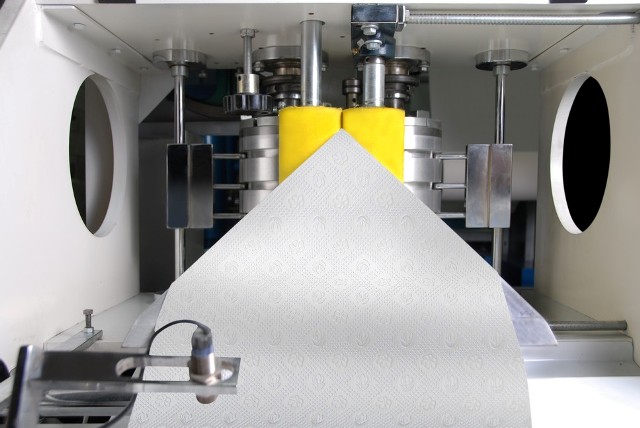

* 1/4 folding shape (square shape).

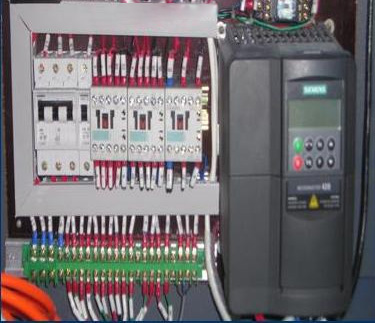

* Logo control system.
* Electronic motor protection.
* Electronic sensor (paper control).
* Assist pulling cylinders with variable speed.

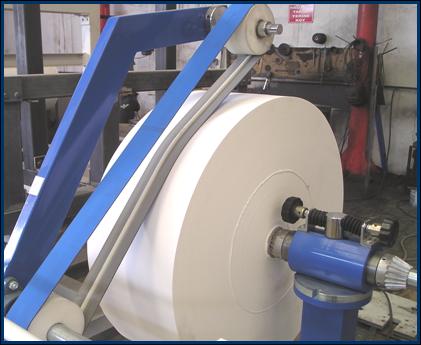

* Jumbo roll rotating stand.
* Safety arrangement on band saw.
* Mechanical efficiency of Flexo printing units.
* Jumbo roll opening unit by flat belt.
Technical Features:
* Open sheet size: can produce one size ranging from 21 x 21 cm.
till 40 x 40 cm. - one size as request.
* Max. capacity: 250 m / min.
* Two lines of production.
* Cutting motor: 0.75 KW.
* Width: 1130 mm.
* Length: 3850 - 4500 mm.
* Height: 1780 mm.
* Weight: 1500 - 220 Kg.
* All electric appliances are of Siemens or international brand.
Optional:

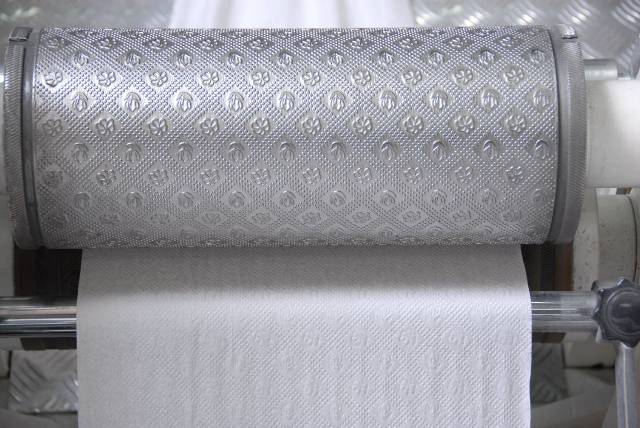

* Second embossing model.

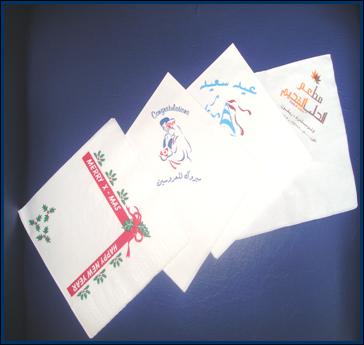

* Flexo - printing unit from 1 to 4 colors.
